PRODUCT

mmWave

Millimeter Wave

    14

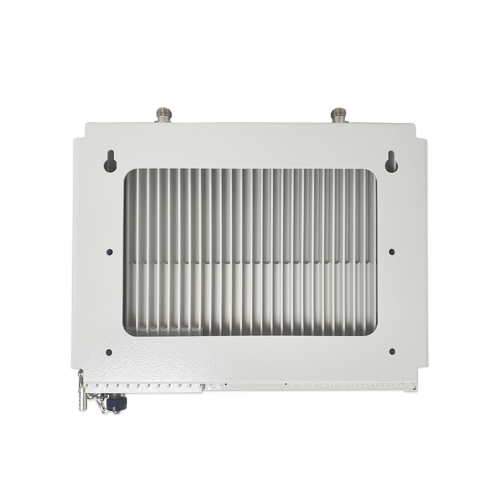

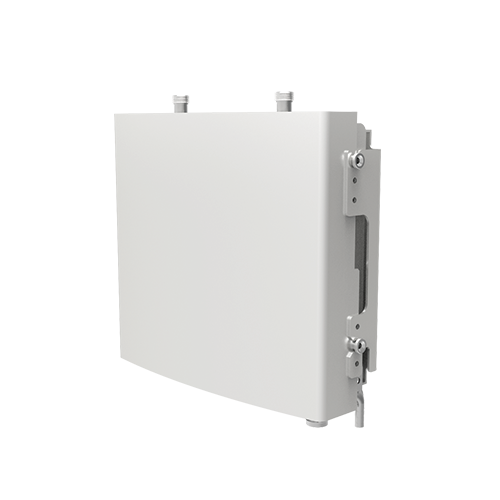

    mmWave OTA repeater
    SDS 28G-V
    KEY FEATURES

    ■ 3GPP 쿼드 밴드 지원 (Band28+Band8+Band3+Band1)

    • Frequency (UL/DL)

      703-748/758-803MHz

      890-915/935-960MHz

      1710-1785/1805-1880MHz

      1920-1980/2110-2170MHz

    • Gain (UL/DL)

      80dB /80dB

    • Output power (UL/DL)

      20dBm @UL

      20dBm @DL total, per each band


    ■ 3개 사업자 동시 서비스

    • 지정된 각 3GPP Band에서 최대 3개의 독립적인 사업자 신호를 동시에 서비스 지원

    • 지정된 각 3GPP Band의 전체 주파수 대역에서 임의의 사업자 대역을 설정 가능

    • 사업자 공용화가 요구되는 국소에 대해 초기 설비투자 비용 절감


    ■ 저지연 설계

    • 3G/4G FDD 서비스에 최적화된 시간지연 설계

    • 시스템 시간 지연을 최소화하여 5G sub-6 FDD NR 지원 가능


    ■ 밴드 설정

    • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

    • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

    • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감

    DAS

    Distributed Antenna System

      13

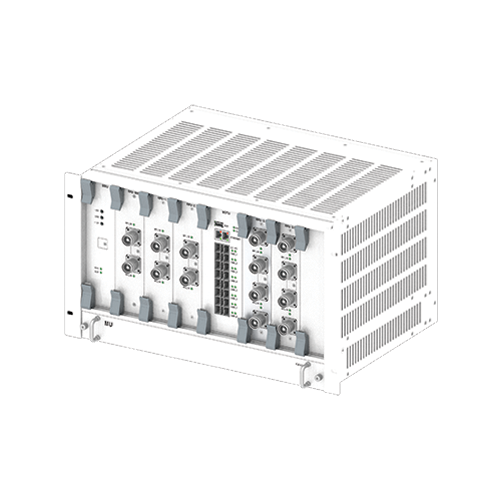

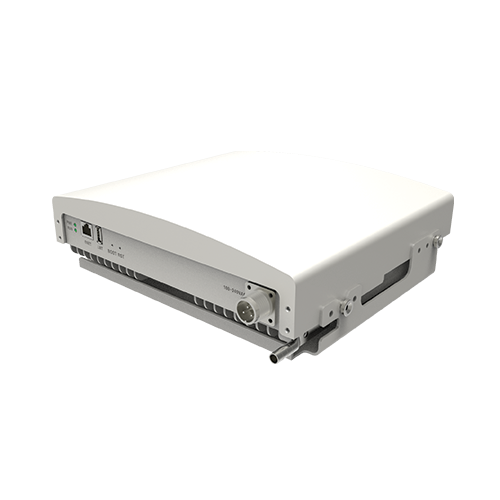

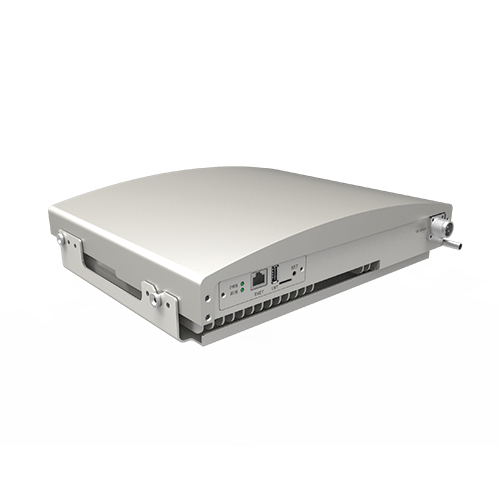

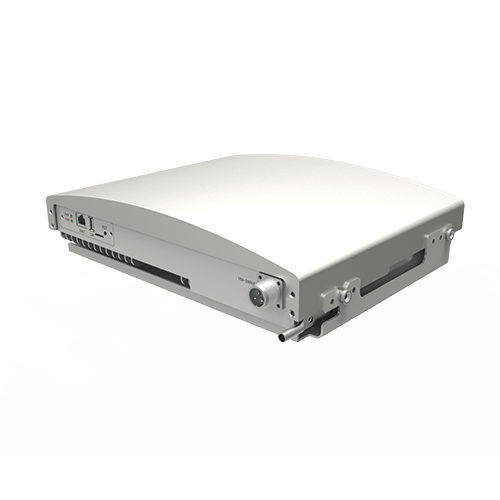

      Multi-band DAS
      SDM 1735-SB
      KEY FEATURES

        12

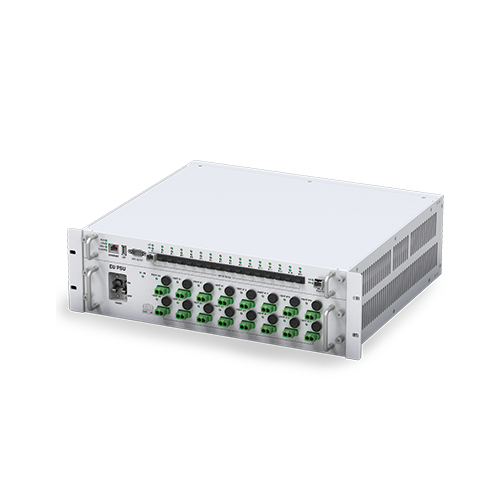

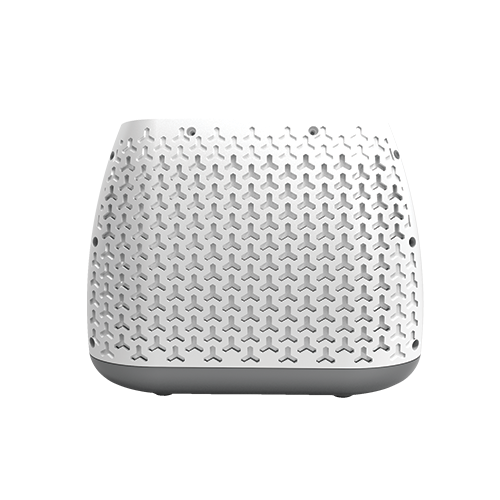

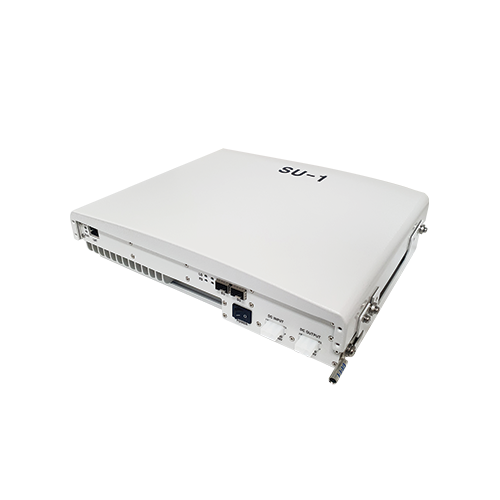

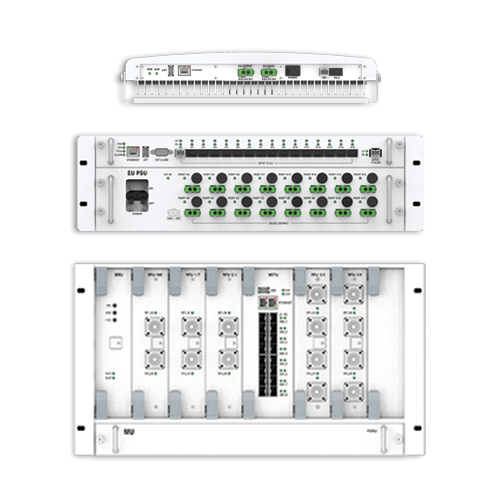

        Multi-carrier DAS
        GDM 3436-MC
        KEY FEATURES

        ■ 3GPP 4G+5G 멀티 밴드 지원

        • Frequency case

          700M+1.7G+2.1G+3.5G+3.9G @Frequency case1

          900M+1.7G+2.1G+3.5G+3.9G @Frequency case2

        • Frequency range (UL/DL)

          738-748/793-803MHz @700M

          900-915/945-960MHz @900M

          1750-1765/1845-1860MHz @1.7G

          1960-1980/2150-2170MHz @2.1G

          3400-3440MHz, 3560-3600MHz @3.5G

          3900-4000MHz @3.9G

        • SU Types

          1.7G+2.1G+3.5G @SU TYPE1

          (700M or 900M)+3.9G @SU TYPE2

        • Gain (UL/DL)

          27/23dB @700M, 900M, 1.7G, 2.1G

          27/24dB @3.5G, 3.9G

        • Output  power

          0dBm @UL

          +23dBm @DL 700M, 900M, 1.7G, 2.1G

          +24dBm @DL 3.5G, 3.9G


        ■ 기본 규격

        • MU : EU : SU=1 : 8 : 128

        • 잡음지수 ≤ 6dB

        • EVM ≤ 3%, RMS

        • 시간 지연 <6usec

        • 정재파비 < 1.5 : 1


        ■ 주요 기능

        • RRC필터를 이용한 역방향 노이즈 제거

        • 기지국 정합장치 내장

        • Latency를 최소화하여 DAS와 옥외 기지국과의 간섭 배제

        • 900MHz RFID 간섭제거

        • SU간 지연 보정 기능

        • TDD동기 추출 기능

        • SU 안테나 모니터링 기능

        ICS

        Interference Cancellation System

          11

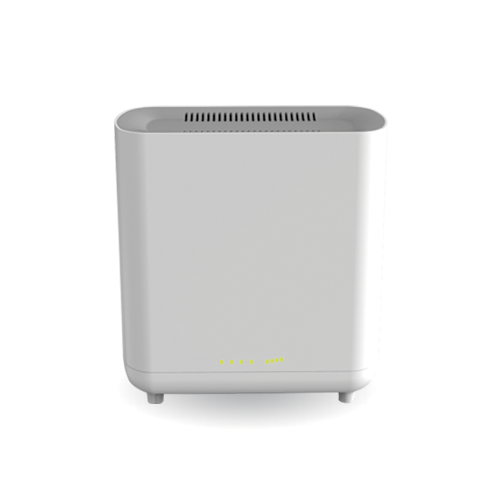

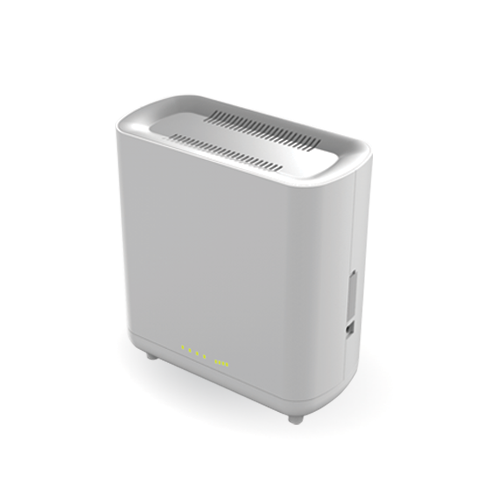

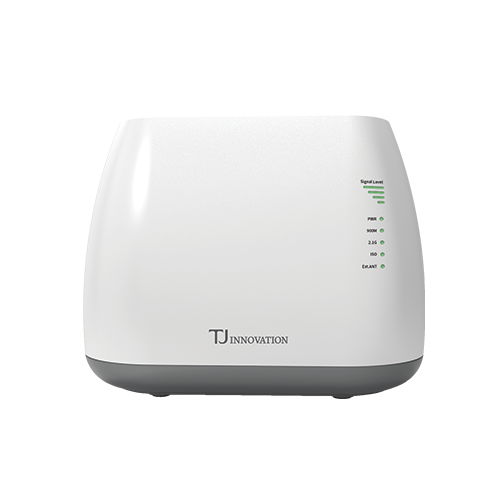

          Home ICS G-DUO Series
          HIT-0921
          KEY FEATURES

          ■ 3GPP 듀얼밴드 지원 (Band8+Band1)

          • Frequency (UL/DL)

            900-915/945-960MHz

            1960-1980/2150-2170MHz

          • Gain (UL/DL)

            70dB /70dB

          • Output power (UL/DL)

            13dBm /10dBm


          ■ RFID/MCA 간섭제거 필터 내장

          • RFID/MCA 주파수 대역 간섭제거를 위한 별도 외장필터 불필요

          • DSP의 equalizer기능으로 시스템 평탄 특성 확보


          ■ 저지연 설계

          • 3G/4G FDD 서비스에 최적화된 시간지연 설계

          • 시스템 시간 지연을 최소화하여 5G sub-6 FDD NR 지원 가능


          ■ 밴드 설정

          • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

          • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

          • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감

            10

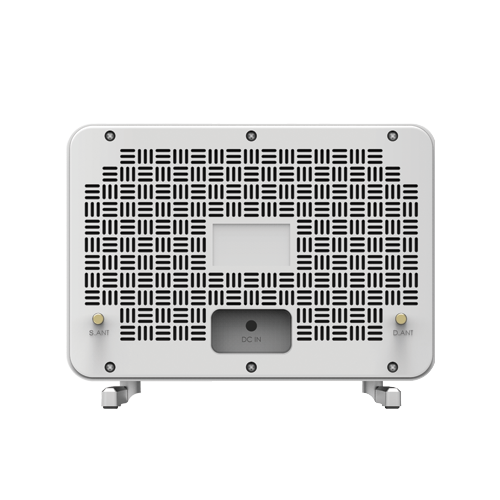

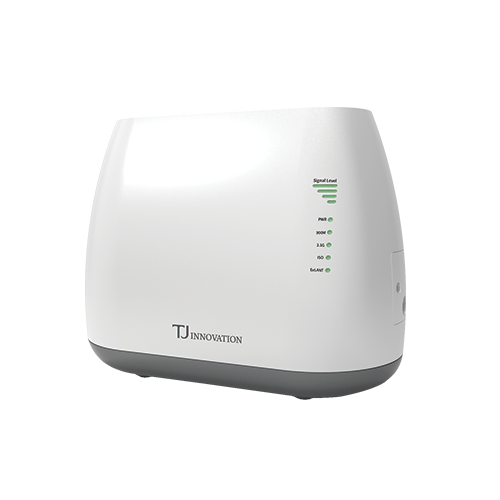

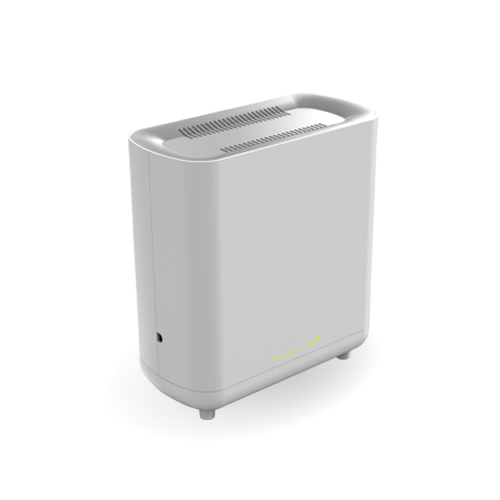

            Home ICS DUO series
            HIT-0717
            KEY FEATURES

              9

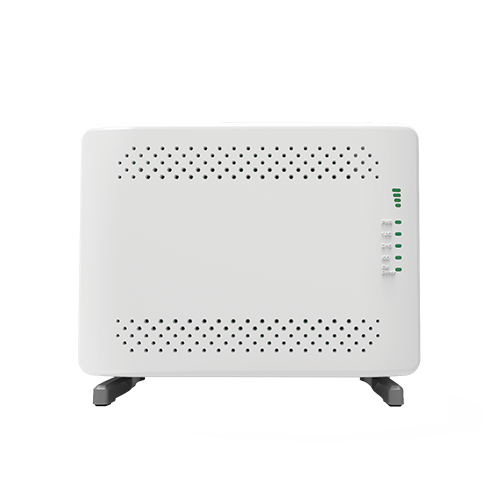

              Home ICS G-DUO Series
              HIT-1821
              KEY FEATURES

              ■ 3GPP 듀얼밴드 지원 (Band3+Band1)

              • Frequency (UL/DL)

                1710-1785/1805-1880MHz
                1920-1980/2110-2170MHz

              • Gain (UL/DL)

                70dB /70dB

              • Output power (UL/DL)

                13dBm @UL

                15dBm @DL total, per each band


              ■ 3개 사업자 동시 서비스

              • 지정된 각 3GPP Band에서 최대 3개의 독립적인 사업자 신호를 동시에 서비스 지원

              • 지정된 각 3GPP Band의 전체 주파수 대역에서 임의의 사업자 대역을 설정 가능

              • 사업자 공용화가 요구되는 국소에 대해 초기 설비투자 비용 절감


              ■ 저지연 설계

              • 3G/4G FDD 서비스에 최적화된 시간지연 설계

              • 시스템 시간 지연을 최소화하여 5G sub-6 FDD NR 지원 가능


              ■ 밴드 설정

              • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

              • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

              • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감

                8

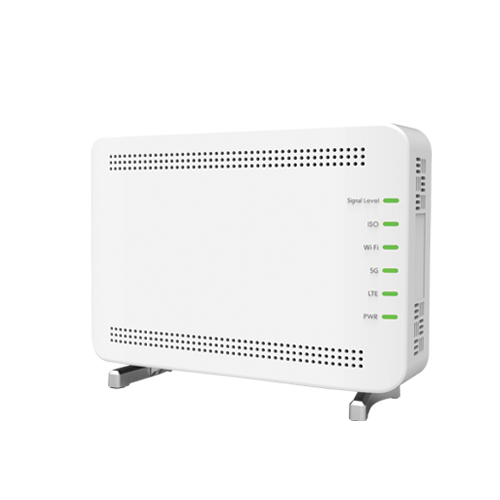

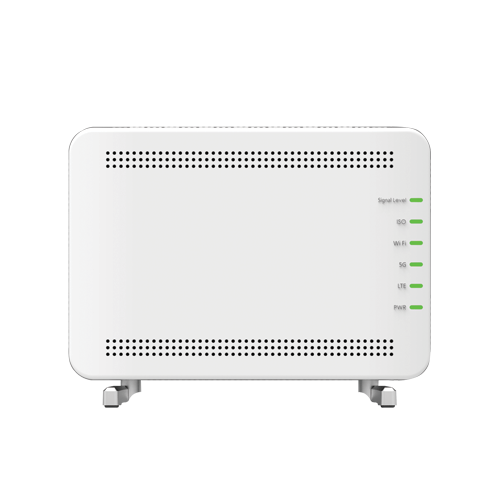

                Home ICS DUO Series
                HIT-2139
                KEY FEATURES

                ■ 3GPP 듀얼밴드 지원 (Band1+N77)

                • Frequency (UL/DL)

                  1960-1980/2150-2170MHz

                  3900-4000MHz

                • Gain (UL/DL)

                  70dB /70dB

                • Output power (UL/DL)

                  15dBm /15dBm


                ■ 대역폭 공유

                • 채널 대역폭은 2개의 주파수 블록으로 분리하여 개별 동작 가능

                • 각 블록은 2개의 서로 다른 통신 시스템으로 구성 가능

                • 3G 혹은 4G를 동시에 독립적으로 서비스 가능


                ■ 5G TDD Home ICS 제품

                • 세계 최초 5G TDD Home ICS 제품

                • 3G/4G FDD 서비스에 최적화된 시간지연 설계 @Band1


                ■ 밴드 설정

                • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

                • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

                • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감


                ■ 동기 획득

                • 기지국 신호로부터 전달된 RF신호를 복조하여 TDD동기신호를 추출

                • 동기신호를 얻기 위한 별도의 5G 모뎀 불필요

                  7

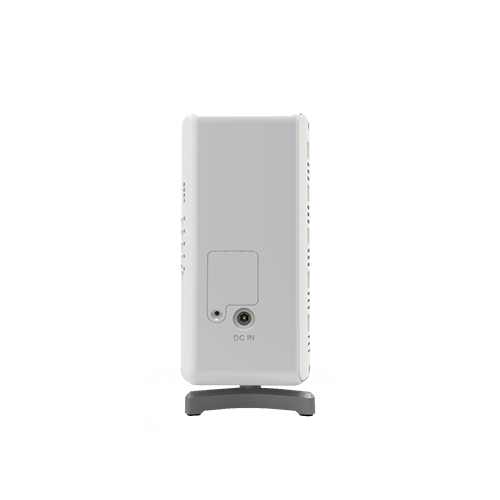

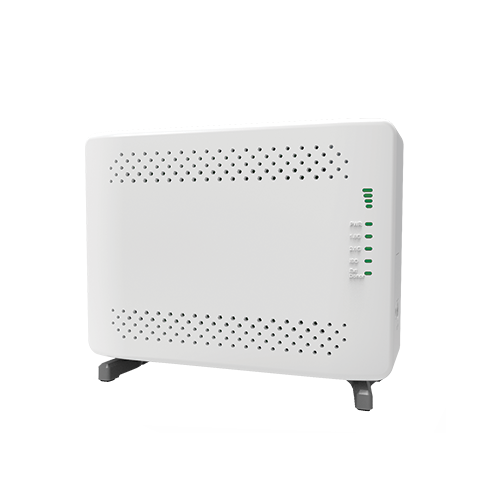

                  Home ICS Single Series
                  HIT-2100
                  KEY FEATURES

                  ■ 3GPP Band1 지원

                  • Frequency (UL/DL)

                    1920-1980/2110-2170MHz

                  • Gain (UL/DL)

                    70dB /70dB

                  • Output power (UL/DL)

                    13dBm /10dBm


                  ■ 저지연 설계

                  • 3G/4G FDD 서비스에 최적화된 시간지연 설계

                  • 시스템 시간 지연을 최소화하여 5G sub-6 FDD NR 지원 가능


                  ■ 밴드 설정

                  • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

                  • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

                  • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감


                  ■ 대역폭 공유

                  • 채널 대역폭은 2개의 주파수 블록으로 분리하여 개별 동작 가능

                  • 각 블록은 2개의 서로 다른 통신 시스템으로 구성 가능

                  • 3G 혹은 4G를 동시에 독립적으로 서비스 가능

                    6

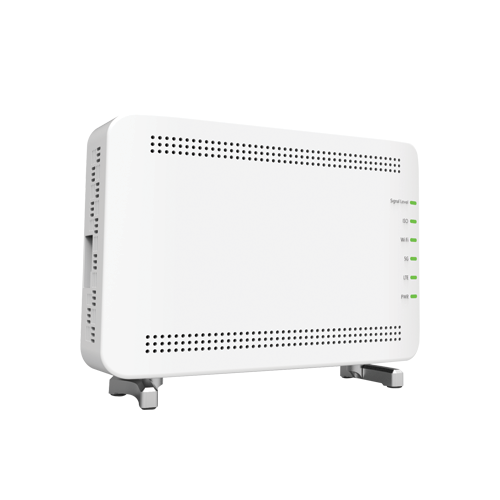

                    Home ICS DUO Series
                    HIT-2135
                    KEY FEATURES

                    ■ 3GPP 듀얼밴드 지원 (Band1+N78)

                    • Frequency (UL/DL)

                      1960-1980/2150-2170MHz

                      3400-3440MHz, 3560-3600MHz

                    • Gain (UL/DL)

                      70dB /70dB

                    • Output power (UL/DL)

                      15dBm /15dBm


                    ■ 대역폭 공유

                    • 채널 대역폭은 2개의 주파수 블록으로 분리하여 개별 동작 가능

                    • 각 블록은 2개의 서로 다른 통신 시스템으로 구성 가능

                    • 3G 혹은 4G를 동시에 독립적으로 서비스 가능


                    ■ 5G TDD Home ICS 제품

                    • 세계 최초 5G TDD Home ICS 제품

                    • 3G/4G FDD 서비스에 최적화된 시간지연 설계 @Band1


                    ■ 밴드 설정

                    • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

                    • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

                    • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감


                    ■ 동기 획득

                    • 기지국 신호로부터 전달된 RF신호를 복조하여 TDD동기신호를 추출

                    • 동기신호를 얻기 위한 별도의 5G 모뎀 불필요

                    RF

                    Radio Frequency

                      5

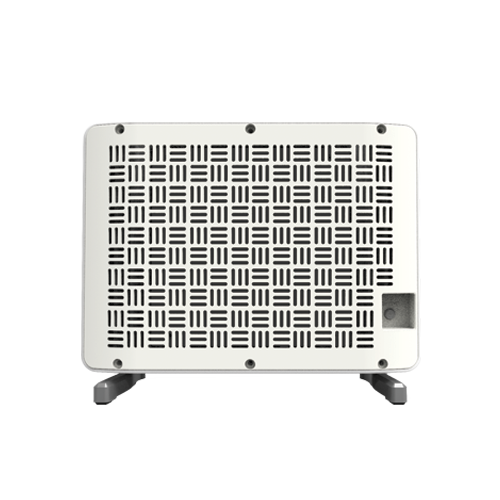

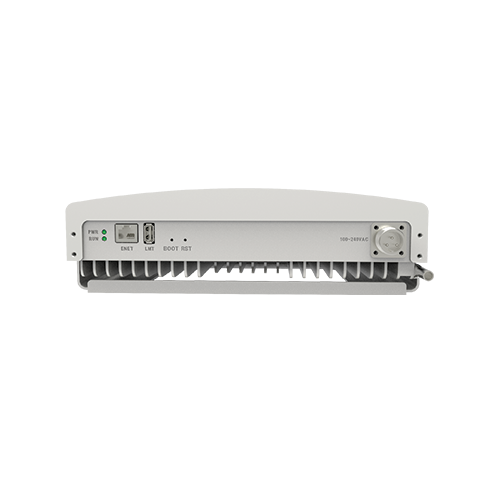

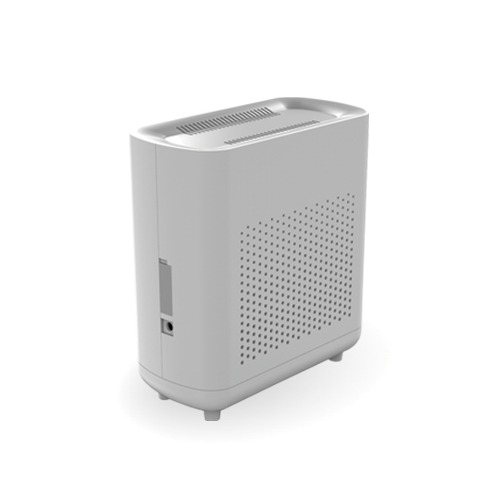

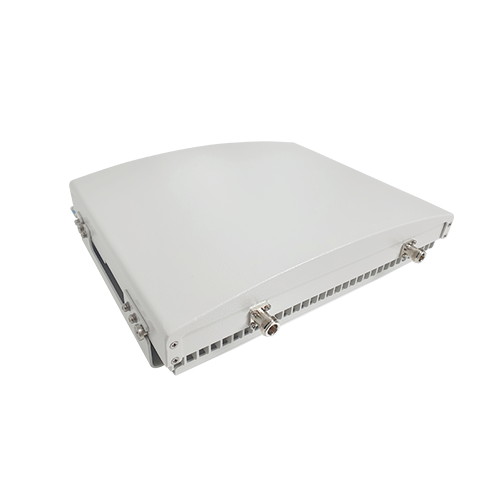

                      Booster G-QUAD series
                      BIT-0721Q
                      KEY FEATURES

                        4

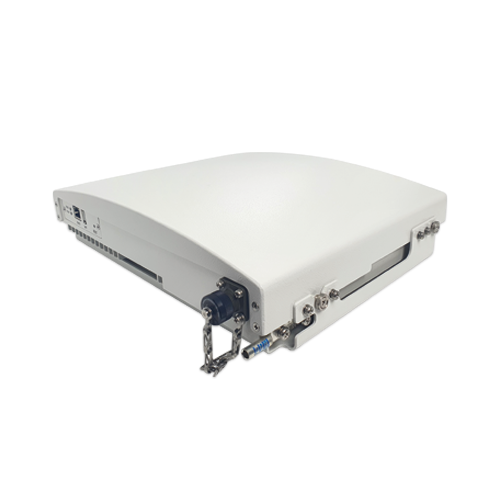

                        Booster G-TRIO series
                        BIT-1835T
                        KEY FEATURES

                        ■ 3GPP 트리플 밴드 지원 (Band3+Band1+N78)

                        • Frequency (UL/DL)

                          1710-1785/1805-1880MHz

                          1920-1980/2110-2170MHz

                          3500-3700MHz

                        • Gain (UL/DL)

                          80dB /80dB

                        • Output power (UL/DL)

                          20dBm @UL

                          20dBm @DL total, per each band


                        ■ 3개 사업자 동시 서비스

                        • 지정된 각 3GPP Band에서 최대 3개의 독립적인 사업자 신호를 동시에 서비스 지원

                        • 지정된 각 3GPP Band의 전체 주파수 대역에서 임의의 사업자 대역을 설정 가능

                        • 사업자 공용화가 요구되는 국소에 대해 초기 설비투자 비용 절감


                        ■ 저지연 설계

                        • 3G/4G FDD 서비스에 최적화된 시간지연 설계

                        • 시스템 시간 지연을 최소화하여 5G sub-6 FDD NR 지원 가능


                        ■ 밴드 설정

                        • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

                        • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

                        • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감


                        ■ 동기 획득

                        • 기지국 신호로부터 전달된 RF신호를 복조하여 TDD동기신호를 추출

                        • 동기신호를 얻기 위한 별도의 5G 모뎀 불필요

                          3
                          Booster G-DUO Series
                          BIT-1821
                          KEY FEATURES

                          ■ 3GPP 듀얼밴드 지원 (Band3+Band1)

                          • Frequency (UL/DL)

                            1710-1785/1805-1880MHz

                            1920-1980/2110-2170MHz

                          • Gain (UL/DL)

                            80dB /80dB

                          • Output power (UL/DL)

                            20dBm @UL

                            20dBm @DL total, per each band


                          ■ 3개 사업자 동시 서비스

                          • 지정된 각 3GPP Band에서 최대 3개의 독립적인 사업자 신호를 동시에 서비스 지원

                          • 지정된 각 3GPP Band의 전체 주파수 대역에서 임의의 사업자 대역을 설정 가능

                          • 사업자 공용화가 요구되는 국소에 대해 초기 설비투자 비용 절감


                          ■ 저지연 설계

                          • 3G/4G FDD 서비스에 최적화된 시간지연 설계

                          • 시스템 시간 지연을 최소화하여 5G sub-6 FDD NR 지원 가능


                          ■ 밴드 설정

                          • 내장된 모뎀 신호로부터 사업자의 서비스 주파수 대역 구성 정보를 획득

                          • 해당 사업자의 주파수 대역 정보를 분석하여 디지털 필터 구성을 자동 설정

                          • 주파수 재배치시 펌웨어 변경없이 필터 설정이 수행되므로 망운용 비용 절감

                          PSR

                          Public Safety Repeater

                            2

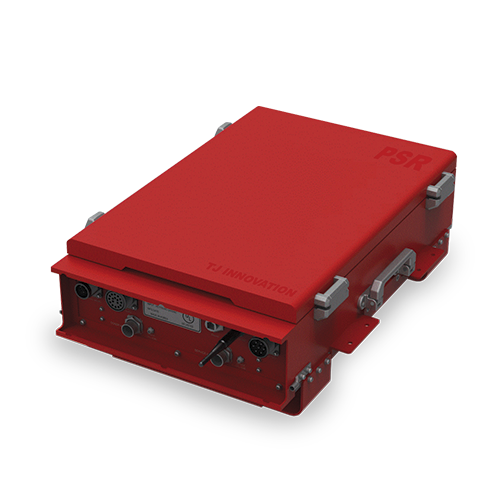

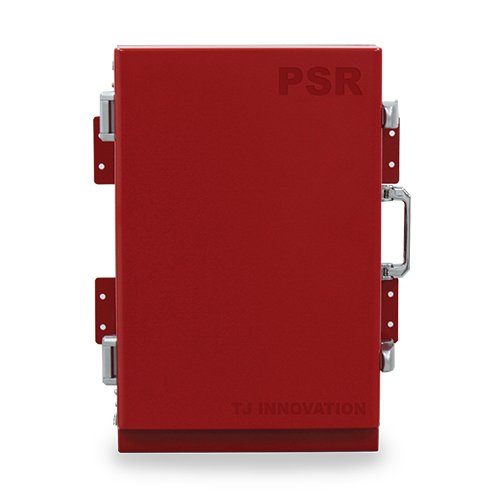

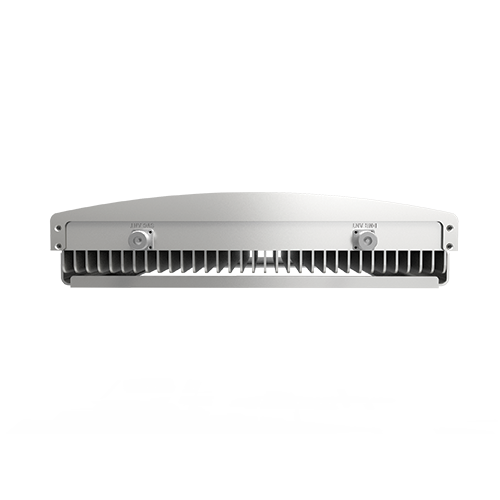

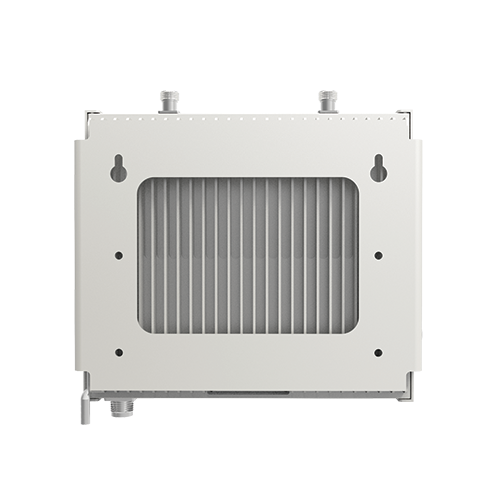

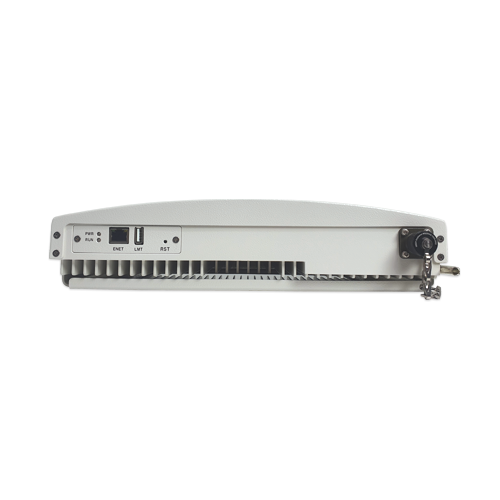

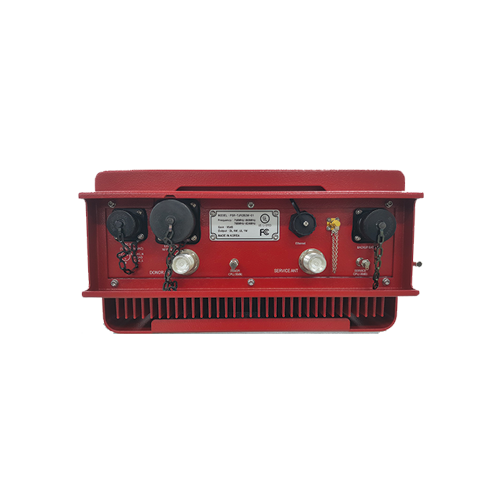

                            Public Safety Repeater
                            PSR-0708-A/B
                            KEY FEATURES

                            ■ 북미 Public Safety band 지원 (FirstNet+PS700+PS800)

                            • Frequency (UL/DL)

                            • Class A :

                              769-775MHz /799-805MHz @PS700

                              851-869MHz /806-824MHz @PS800

                            • Class B :

                              758-768MHz /788-798MHz @FirstNet

                              769-775MHz /799-805MHz @PS700

                              851-861MHz /806-816 MHz @PS800

                            • Gain (UL/DL)

                              95dB /95dB

                            • Output power (UL/DL)

                              30dBm /33dBm @each bands

                              30dBm /36dBm @Total


                            ■ 주요 기능

                            • Class A 및 Class B 서비스 여부를 SW 설정을 통해 선택적으로 지원

                            • FirstNet밴드 PS-LTE 지원

                            • 각 PS밴드 당 36개의 협대역 채널 지원

                            • 안테나 모니터링 기능으로 서비스 신뢰도 향상


                            ■ 소형 경량구조

                            • PIMD cancellation 및 active digital equalizer 기능구현으로 하드웨어 소형화

                            • 소모 전력 절감으로 장비 중량 감소

                            • NEMA 4X 규격 인증 함체


                            ■ 부가 기능

                            • Web GUI

                            • 스펙트럼 모니터링 기능

                            AMS

                            Antenna Monitoring System

                              1

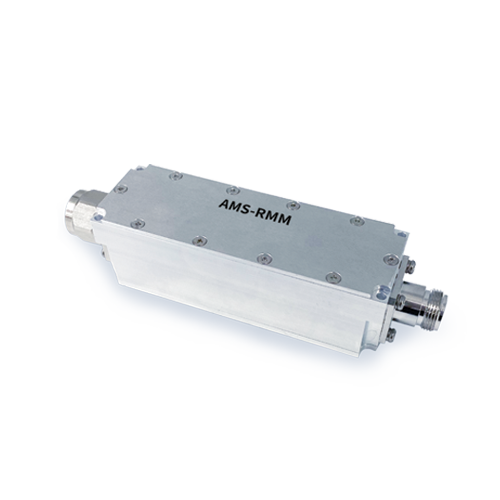

                              Antenna Monitoring System
                              AMS-RMM
                              KEY FEATURES

                              ■ 안테나 모니터링 기능 지원

                              • 인빌딩 DAS시스템의 종단 안테나 서비스 상태 감시

                              • 초기 설치시와 동일한 물리적 연결상태를 유지하는지 여부를 감시

                              • BLE가 내장된 RMM(Remote Monitoring Module)을 안테나에 연결하여 시설

                              • 내장된 BLE를 통해 hearbeat신호를 donor측으로 송신하여 주기적으로 연결 상태를 감시

                              • 별도 전원 공급 없이 BLE를 구동하기 위해 에너지 하베스팅 기능을 적용하여 설계

                              • 안테나 연결 상태 감시기능 제공


                              ■ RMM 전기적 사양

                              • 모니터링 주파수 = 600M~2700MHz @CPL1

                              • BLE 주파수 = 2400M~2480MHz @CPL2

                              • 삽입 손실 <1.0 dB

                              • 커플링 손실 <10±1.0dB @CPL1, 20±1.0dB @CPL2

                              • BLE 지향성 ≥ 25 dB

                              • 반사 손실<-14dB
